BOSCH
16010213

第三方数据BOSCH : 16010213

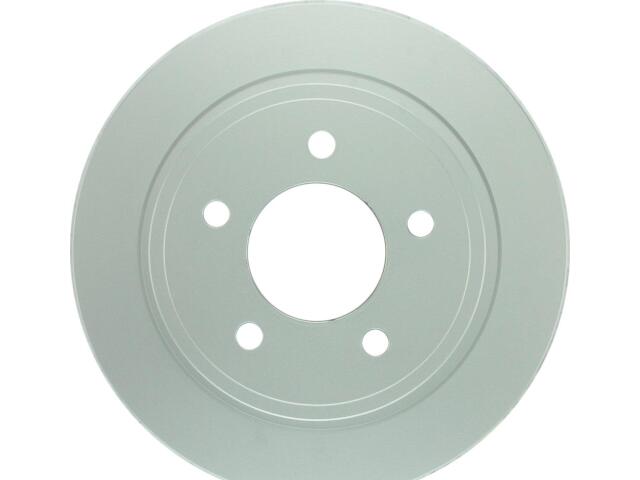

Rotor
BOSCH : 16010213

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 82 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 12.5 mm
Mounting Bolt Hole Circle Diameter: 127 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 14 MM
Outside Diameter: 312 mm
Overall Height: 59.2 mm
Product Height: 2.330709 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 14 MM

适用车型

CHRYSLER (1)

参考号

厂商	号码
WORLDPAC	N1000-303019-BO*

OE号码

品牌	号码
OE	4721240A*
