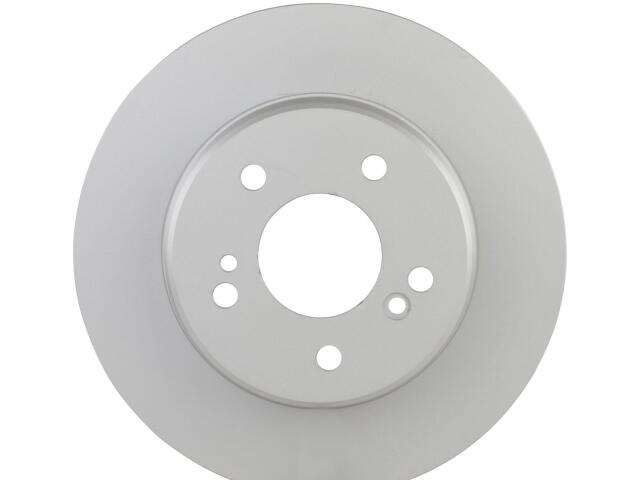

Rotor
BOSCH : 16010203

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 67 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Coated
Discard Thickness: 7.3 MM
Mounting Bolt Hole Circle Diameter: 112 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 9 mm
Outside Diameter: 278 mm
Overall Height: 55.5 mm
Product Height: 2.185039 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 9 mm

适用车型

CHRYSLER (1)

参考号

厂商	号码
WORLDPAC	N1000-279379-BO*

OE号码

品牌	号码
OE	68031811A*
