BOSCH
16010162

第三方数据BOSCH : 16010162

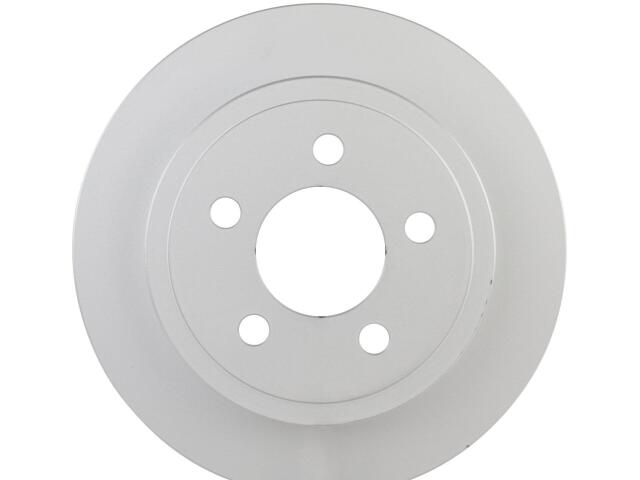

Rotor
BOSCH : 16010162

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 72 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 11 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 12 mm
Outside Diameter: 285 mm
Overall Height: 59.3 MM
Product Height: 2.334646 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 12 mm

适用车型

JEEP (2)

参考号

厂商	号码
WORLDPAC	N1000-193316-BO*

OE号码

品牌	号码
OE	52128411A*
