BOSCH
16010155

第三方数据BOSCH : 16010155

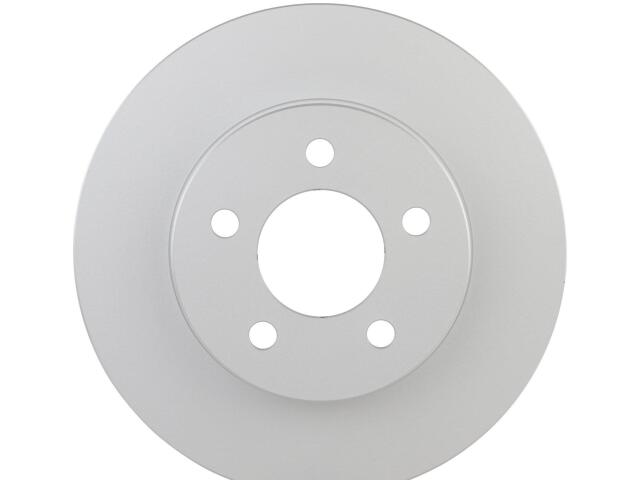

Rotor
BOSCH : 16010155

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 72.1 MM
Construction: Vented
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 26 mm
Mounting Bolt Hole Circle Diameter: 114.3 mm
Mounting Bolt Hole Quantity: 5
Nominal Thickness: 28 mm
Outside Diameter: 288.1 mm
Overall Height: 64.6 mm
Product Height: 2.543307 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 28 mm

适用车型

JEEP (1)

参考号

厂商	号码
WORLDPAC	N1000-142545-BO*

OE号码

品牌	号码
OE	52128247A*
