BOSCH
12011448

第三方数据BOSCH : 12011448

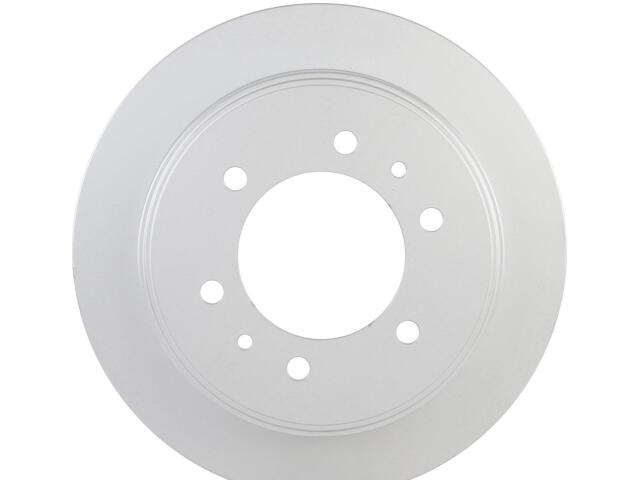

Rotor
BOSCH : 12011448

Bearings Included: No
Brake Surface Finish: Solid
Center Bore Diameter: 101 mm
Construction: Solid
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: Directional
Disc Finish: Geomet
Discard Thickness: 10.5 mm
Mounting Bolt Hole Circle Diameter: 139.7 mm
Mounting Bolt Hole Quantity: 6
Nominal Thickness: 12 mm
Outside Diameter: 312 mm
Overall Height: 67.7 mm
Product Height: 2.665354 in
Rotor Without Hub Assembly: Yes
Rust Resistant Coating: Yes
Thickness (Disc Brake Rotor): 12 mm

适用车型

HUMMER (2)

参考号

厂商	号码
WORLDPAC	N1000-324364-BO*

OE号码

品牌	号码
OE	1511137*
