AX901598

第三方数据AUTO EXTRA : AX901598

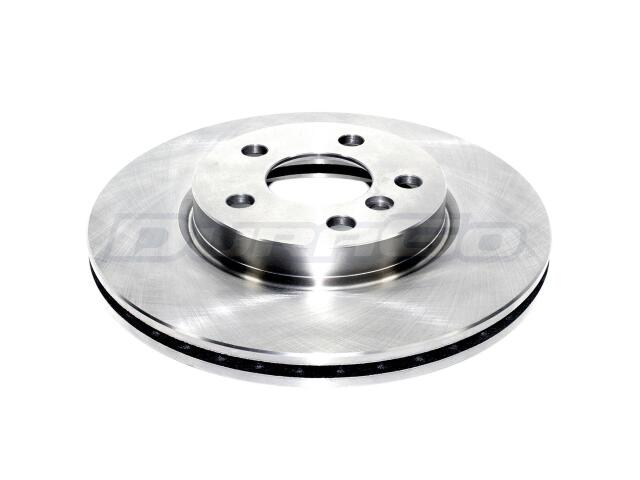

Rotor
AUTO EXTRA : AX901598

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.8
Discard Thickness (MM): 20.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.57
Outside Diameter (MM): 294
Overall Height (IN): 1.78
Overall Height (MM): 45.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

MINI (2)
