AUTO EXTRA
AX901594P

第三方数据AUTO EXTRA : AX901594P

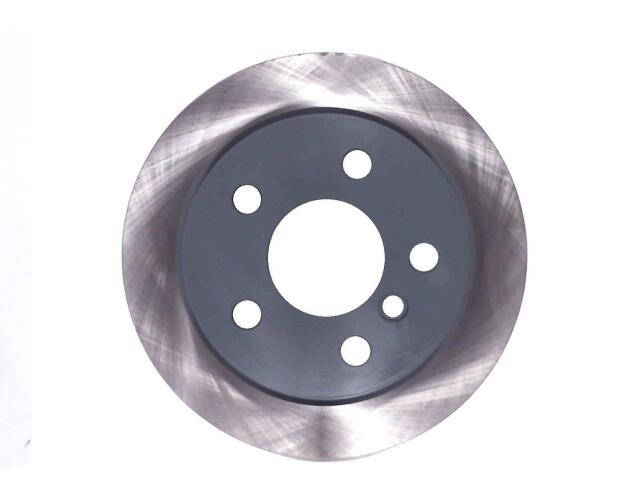

Rotor
AUTO EXTRA : AX901594P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.2
Outside Diameter (MM): 259
Overall Height (IN): 1.99
Overall Height (MM): 50.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MINI (1)

OE号码

品牌	号码
OE	AX901594P:*
