AX901578

第三方数据AUTO EXTRA : AX901578

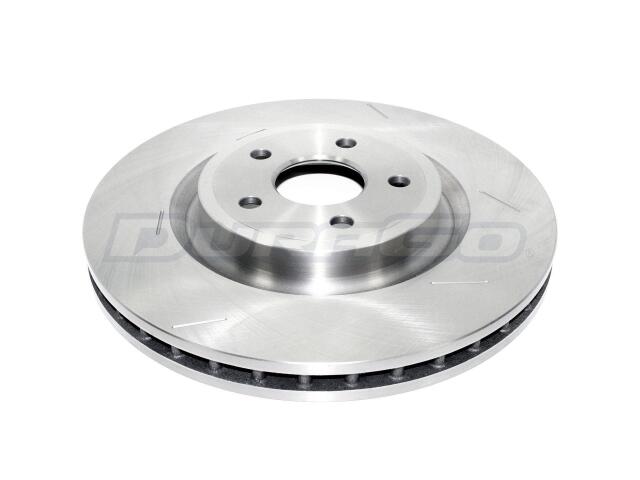

Rotor
AUTO EXTRA : AX901578

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.67
Mounting Bolt Hole Diameter (MM): 17.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 14.96
Outside Diameter (MM): 380
Overall Height (IN): 2.15
Overall Height (MM): 54.6
Rust Resistant Coating: No
Slotted: Yes
Solid Or Vented Type Rotor: Vented

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	AX901578:*
