AUTO EXTRA
AX901480P

第三方数据AUTO EXTRA : AX901480P

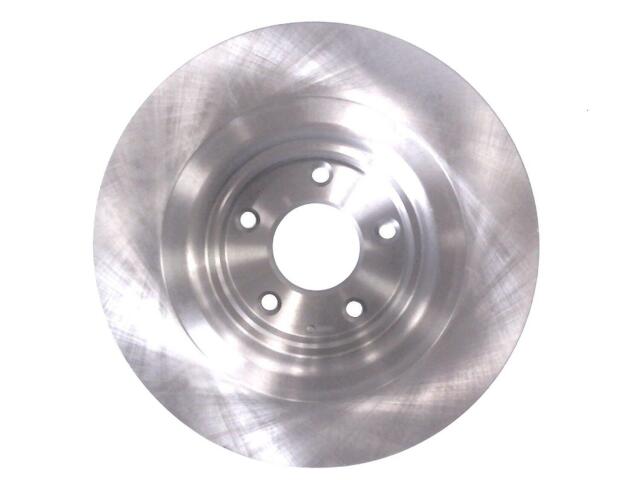

Rotor
AUTO EXTRA : AX901480P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.78
Outside Diameter (MM): 324.6
Overall Height (IN): 1.77
Overall Height (MM): 45
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	AX901480P:*
