AUTO EXTRA
AX901426P

第三方数据AUTO EXTRA : AX901426P

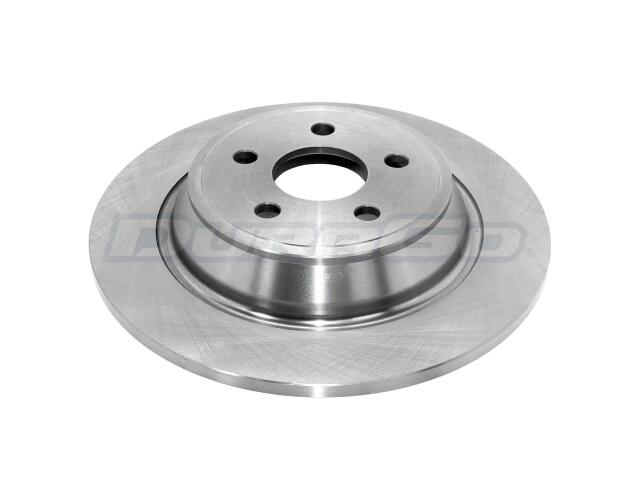

Rotor
AUTO EXTRA : AX901426P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.37
Discard Thickness (MM): 9.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.44
Outside Diameter (MM): 316
Overall Height (IN): 2
Overall Height (MM): 50.8
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (3)

POLICE RESPONDER HYBRID (1)

EDGE (3)

FUSION (1)

LINCOLN (4)

MKZ (3)

NAUTILUS (2)

CONTINENTAL (3)

MKX (2)

OE号码

品牌	号码
OE	AX901426P:*
