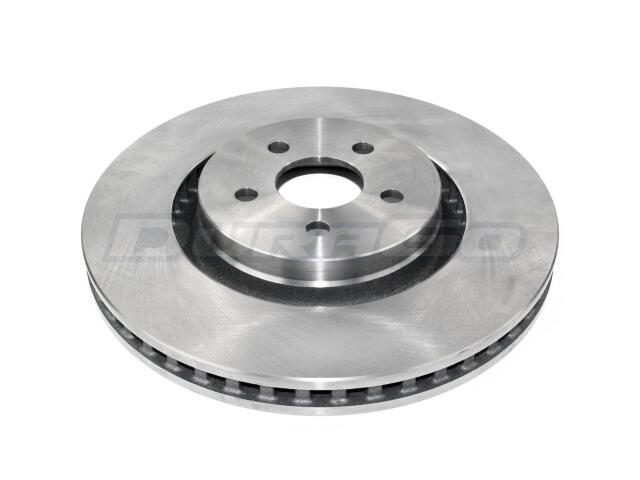

Rotor
AUTO EXTRA : AX901424P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.2
Discard Thickness (MM): 30.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 2.06
Overall Height (MM): 52.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

EDGE (3)

2.0L L4 Turbocharged (8)

2.7L V6 Turbocharged (8)

3.5L V6 (4)

FUSION (1)

LINCOLN (4)

NAUTILUS (2)

CONTINENTAL (3)

MKX (2)

MKZ (1)
