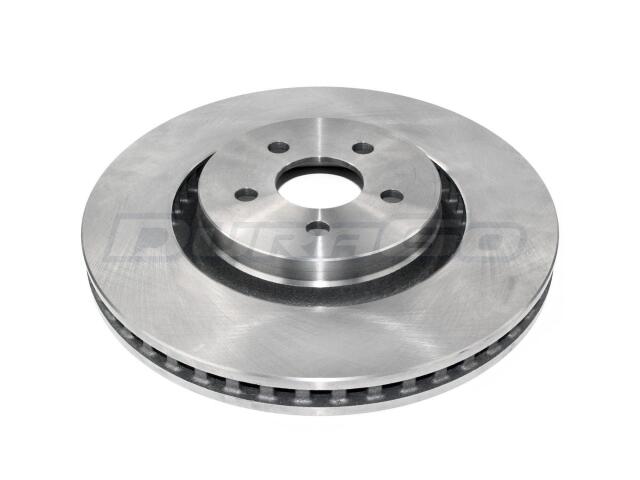

Rotor
AUTO EXTRA : AX901424

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.2
Discard Thickness (MM): 30.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 2.06
Overall Height (MM): 52.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

EDGE (3)

2.0L L4 Turbocharged (8)

2.7L V6 Turbocharged (8)

3.5L V6 (4)

FUSION (1)

LINCOLN (4)

NAUTILUS (2)

CONTINENTAL (3)

MKX (2)

MKZ (1)

OE号码

品牌	号码
OE	AX901424:*
