AUTO EXTRA
AX901394P

第三方数据AUTO EXTRA : AX901394P

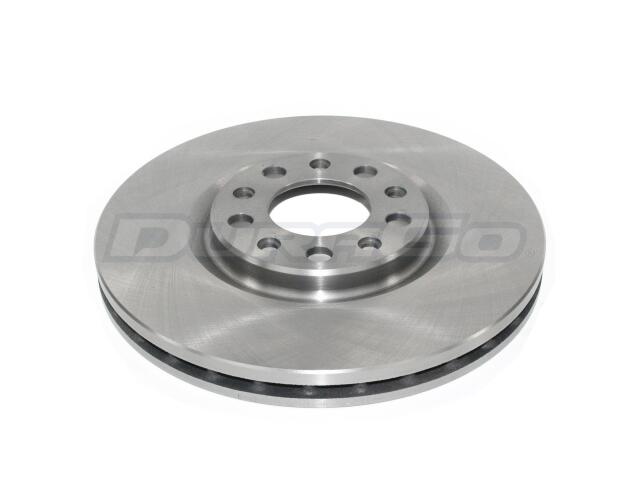

Rotor
AUTO EXTRA : AX901394P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 1.56
Overall Height (MM): 39.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FIAT (1)

JEEP (2)

RENEGADE (4)

COMPASS (4)

OE号码

品牌	号码
OE	AX901394P:*
