第三方数据AUTO EXTRA : AX901390

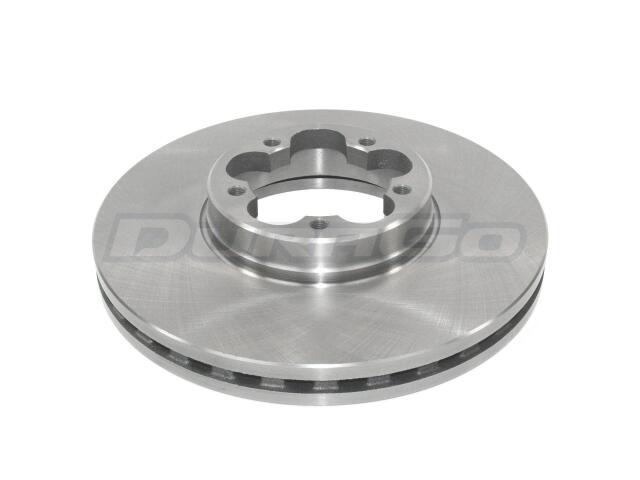

Rotor
AUTO EXTRA : AX901390

Abs Tone Ring Included: No
Bolt Size (MM): M12 x 1.5
Center Hole Diameter (IN): 3.67
Center Hole Diameter (MM): 93.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.16
Discard Thickness (MM): 29.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.47
Mounting Bolt Hole Circle Diameter (MM): 113.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.22
Nominal Thickness (MM): 31
Outside Diameter (IN): 12.13
Outside Diameter (MM): 308
Overall Height (IN): 2.4
Overall Height (MM): 61
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

TRANSIT 150 (2)

TRANSIT 250 (2)

TRANSIT 350 (3)

OE号码

品牌	号码
OE	AX901390:*
