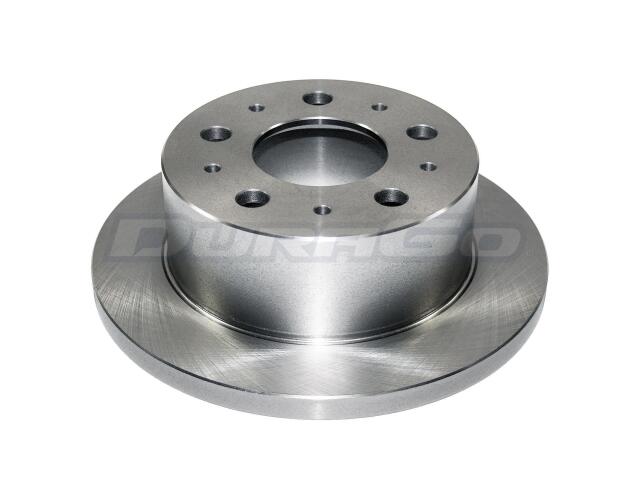

Rotor
AUTO EXTRA : AX901280P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.12
Center Hole Diameter (MM): 79.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.56
Discard Thickness (MM): 14.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.7
Mounting Bolt Hole Diameter (MM): 17.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 16
Outside Diameter (IN): 11.01
Outside Diameter (MM): 279.7
Overall Height (IN): 3.23
Overall Height (MM): 82
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

RAM (3)

PROMASTER 1500 (2)

PROMASTER 2500 (2)

PROMASTER 3500 (2)

OE号码

品牌	号码
OE	AX901280P:*
