AUTO EXTRA
AX901276P

第三方数据AUTO EXTRA : AX901276P

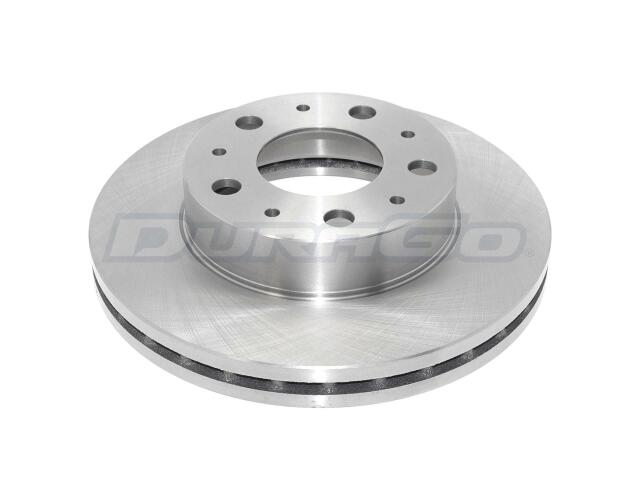

Rotor
AUTO EXTRA : AX901276P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.15
Center Hole Diameter (MM): 80
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.18
Discard Thickness (MM): 30
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.7
Mounting Bolt Hole Diameter (MM): 17.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 2.89
Overall Height (MM): 73.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

RAM (3)

PROMASTER 1500 (2)

PROMASTER 2500 (2)

PROMASTER 3500 (2)

OE号码

品牌	号码
OE	AX901276P:*
