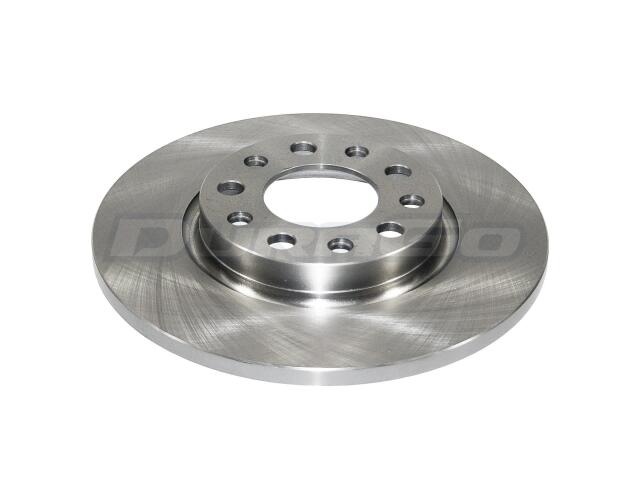

Rotor
AUTO EXTRA : AX901272P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 10.94
Outside Diameter (MM): 278
Overall Height (IN): 1.31
Overall Height (MM): 33.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

JEEP (1)

CHEROKEE (3)

2.0L L4 Turbocharged (4)

2.4L L4 (9)

3.2L V6 (9)

OE号码

品牌	号码
OE	AX901272P:*
