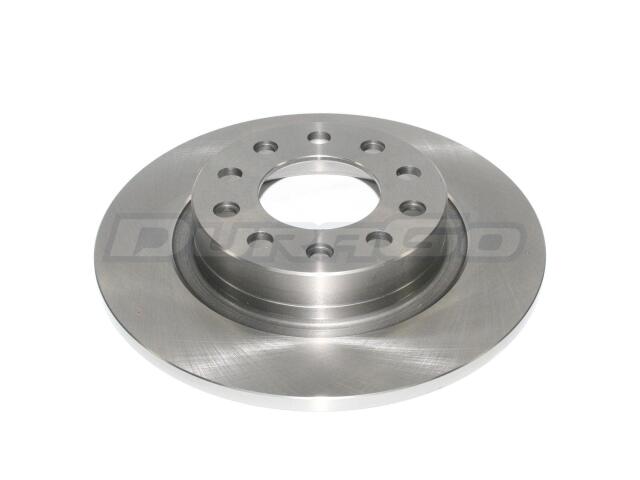

Rotor
AUTO EXTRA : AX901200P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.39
Outside Diameter (MM): 264
Overall Height (IN): 1.59
Overall Height (MM): 40.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

DODGE (1)

OE号码

品牌	号码
OE	AX901200P:*
