第三方数据AUTO EXTRA : AX901136P

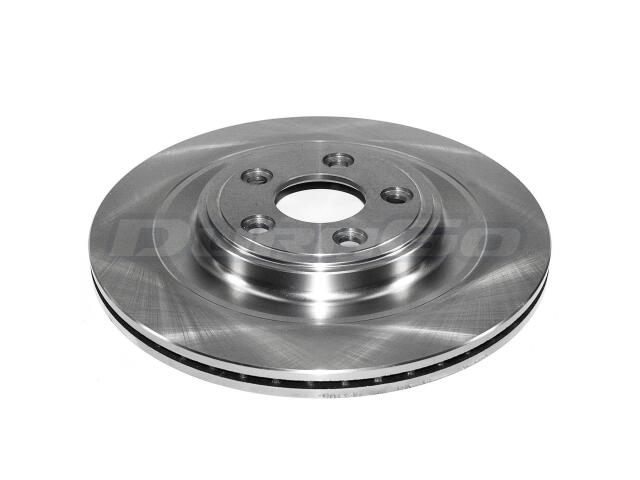

Rotor
AUTO EXTRA : AX901136P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.54
Center Hole Diameter (MM): 64.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.83
Outside Diameter (MM): 326
Overall Height (IN): 1.5
Overall Height (MM): 38.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

JAGUAR (9)

XF (6)

S-TYPE (3)

XJ (3)

VANDEN PLAS (1)

XJ8 (1)

XK (2)

SUPER V8 (1)

XJR (1)

XKR (1)

OE号码

品牌	号码
OE	AX901136P:*
