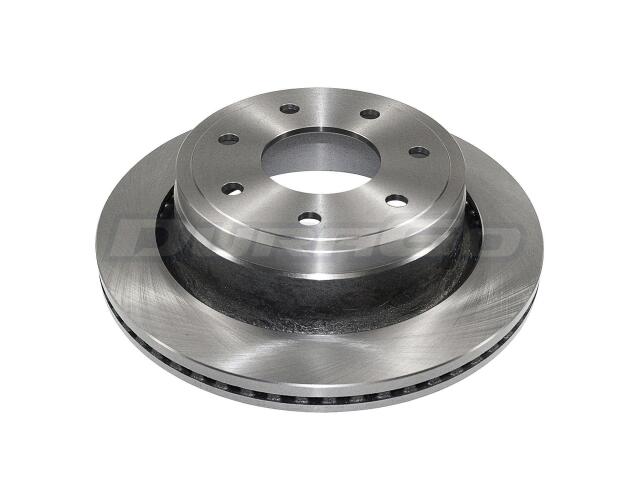

Rotor
AUTO EXTRA : AX901116

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.55
Center Hole Diameter (MM): 90.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.91
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 7
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 13.7
Outside Diameter (MM): 348
Overall Height (IN): 3.15
Overall Height (MM): 80
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX901116:*
