第三方数据AUTO EXTRA : AX901032

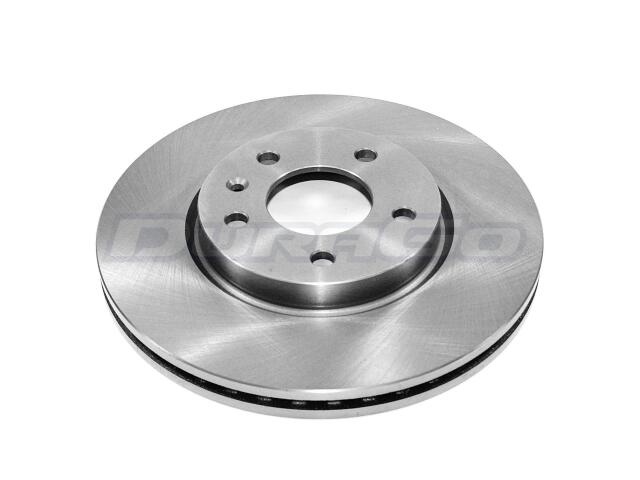

Rotor
AUTO EXTRA : AX901032

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300
Overall Height (IN): 1.79
Overall Height (MM): 45.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CHEVROLET (2)

OE号码

品牌	号码
OE	AX901032:*
