AUTO EXTRA
AX900990P

第三方数据AUTO EXTRA : AX900990P

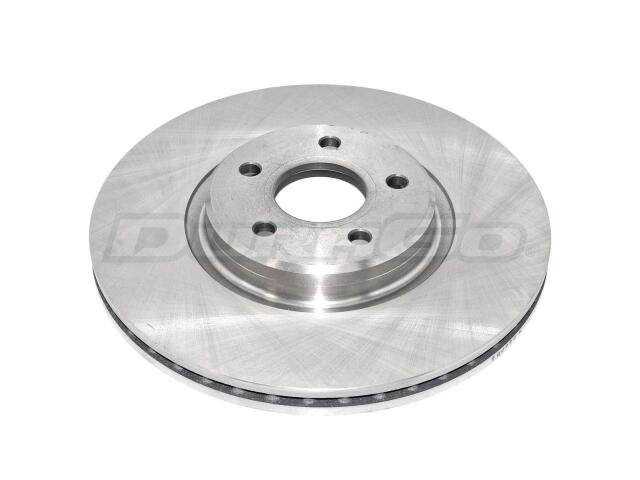

Rotor
AUTO EXTRA : AX900990P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.51
Center Hole Diameter (MM): 63.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.9
Overall Height (MM): 48.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

ESCAPE (3)

TRANSIT CONNECT (2)

FOCUS (1)

VOLVO (3)

S40 (2)

V50 (2)

C70 (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX900990P:*
