AX900974

第三方数据AUTO EXTRA : AX900974

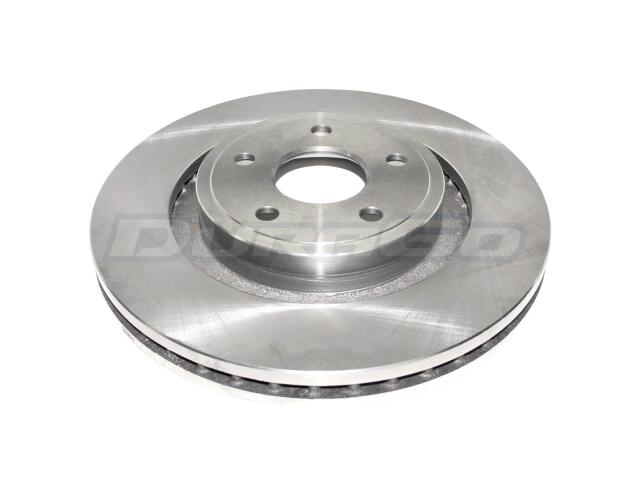

Rotor
AUTO EXTRA : AX900974

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.25
Discard Thickness (MM): 31.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 14.17
Outside Diameter (MM): 360
Overall Height (IN): 2.09
Overall Height (MM): 53
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

JEEP (1)

OE号码

品牌	号码
OE	AX900974:*
