AX900928P

第三方数据AUTO EXTRA : AX900928P

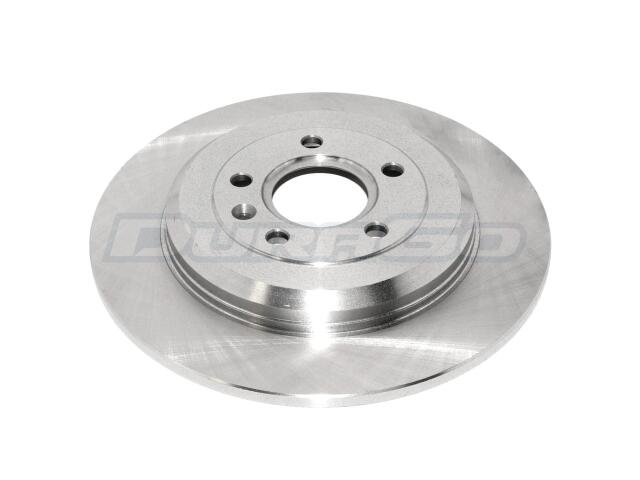

Rotor
AUTO EXTRA : AX900928P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330
Overall Height (IN): 1.52
Overall Height (MM): 38.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (4)

EDGE (3)

EXPLORER (4)

TAURUS (3)

FLEX (2)

LINCOLN (3)

MKT (3)

MKS (2)

MKX (1)

OE号码

品牌	号码
OE	AX900928P:*
