AUTO EXTRA
AX900922P

第三方数据AUTO EXTRA : AX900922P

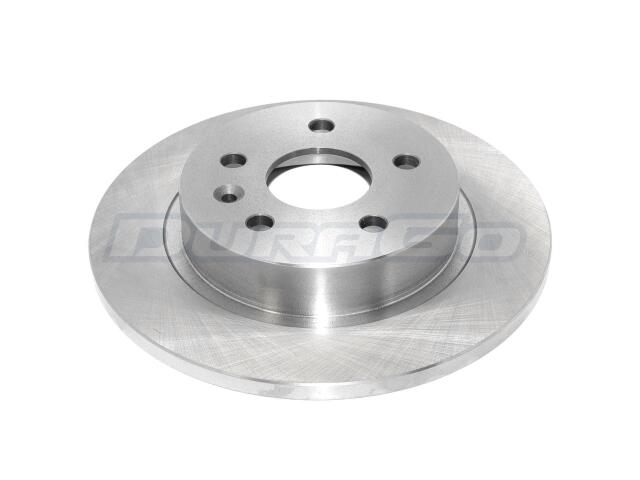

Rotor
AUTO EXTRA : AX900922P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.36
Center Hole Diameter (MM): 60
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.13
Mounting Bolt Hole Circle Diameter (MM): 105
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.48
Nominal Thickness (MM): 12.2
Outside Diameter (IN): 10.55
Outside Diameter (MM): 268
Overall Height (IN): 1.77
Overall Height (MM): 45
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

CHEVROLET (4)

CRUZE (3)

CRUZE LIMITED (2)

SONIC (2)

TRAX (1)

OE号码

品牌	号码
OE	AX900922P:*
