AUTO EXTRA
AX900916

第三方数据AUTO EXTRA : AX900916

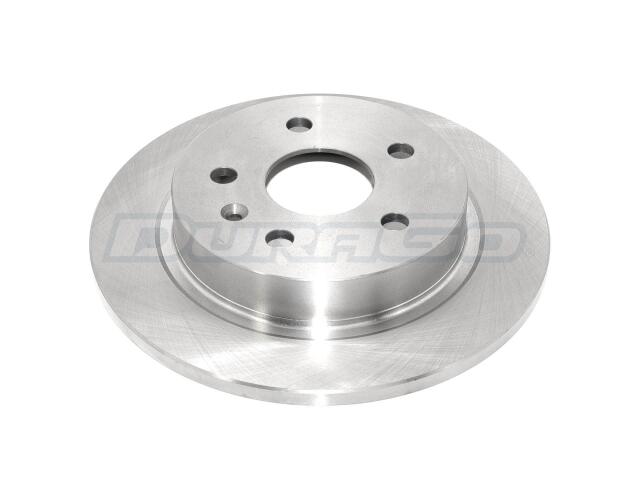

Rotor
AUTO EXTRA : AX900916

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.5
Outside Diameter (MM): 292
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (2)

REGAL (3)

2.0L L4 Turbocharged (7)

2.4L L4 (7)

2.4L L4 ELECTRIC/GAS (2)

LACROSSE (2)

CHEVROLET (2)
