AUTO EXTRA
AX900900P

第三方数据AUTO EXTRA : AX900900P

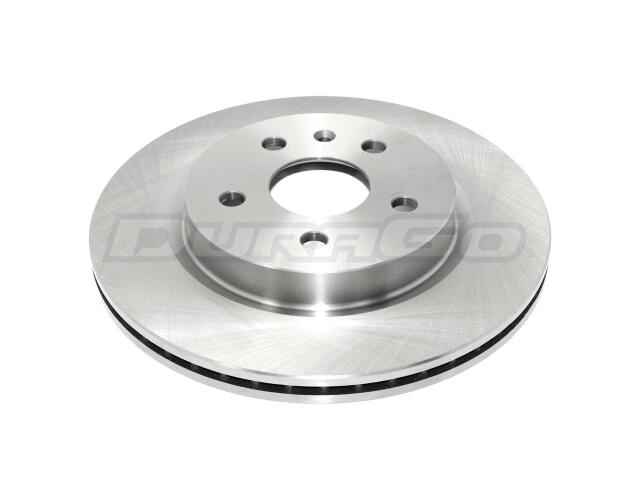

Rotor
AUTO EXTRA : AX900900P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.85
Discard Thickness (MM): 21.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 12.4
Outside Diameter (MM): 315
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SAAB (1)

BUICK (2)

REGAL (3)

LACROSSE (3)

CADILLAC (3)

CT6 (5)

CT5 (3)

XTS (1)

CHEVROLET (3)

CAMARO (3)

MALIBU (3)

IMPALA (3)

OE号码

品牌	号码
OE	AX900900P:*
