AUTO EXTRA
AX900850P

第三方数据AUTO EXTRA : AX900850P

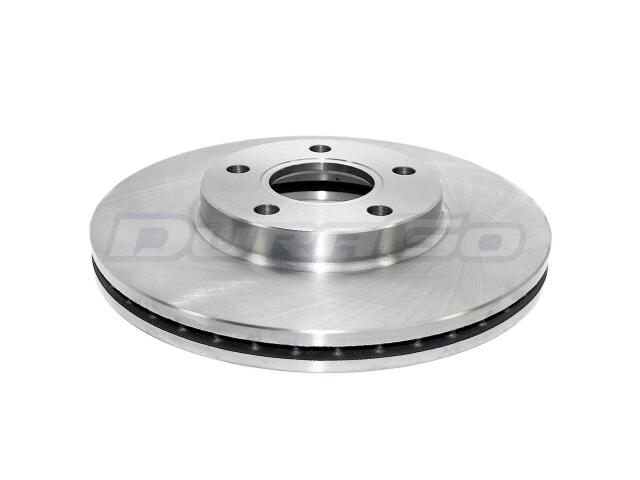

Rotor
AUTO EXTRA : AX900850P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 10.94
Outside Diameter (MM): 278
Overall Height (IN): 1.75
Overall Height (MM): 44.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX900850P:*
