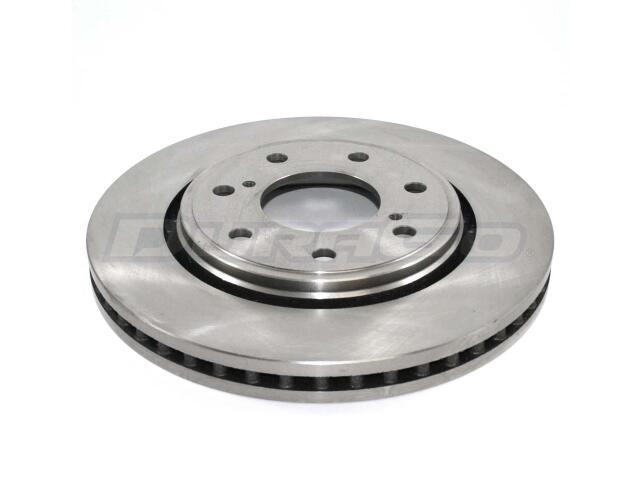

Rotor
AUTO EXTRA : AX900848

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.91
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Mounting Bolt Hole Quantity: 7
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 1.95
Overall Height (MM): 49.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX900848:*
