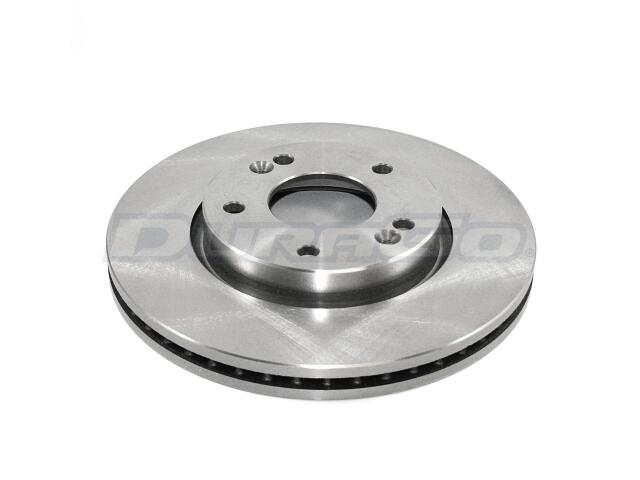

Rotor
AUTO EXTRA : AX900800

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 1.86
Overall Height (MM): 47.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	AX900800:*
