第三方数据AUTO EXTRA : AX900798

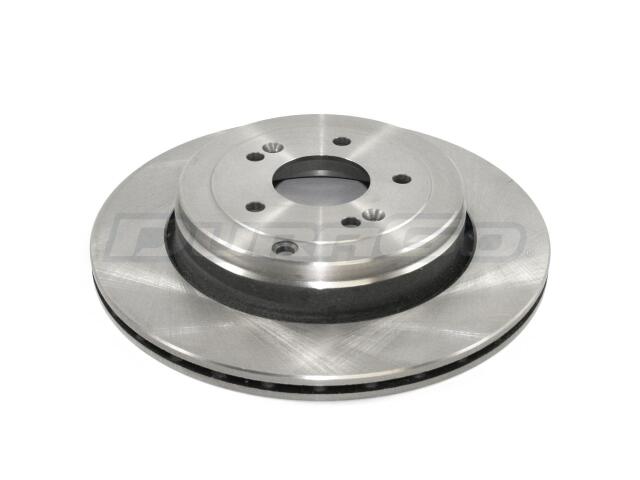

Rotor
AUTO EXTRA : AX900798

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330
Overall Height (IN): 2.38
Overall Height (MM): 60.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	AX900798:*
