AX900792

第三方数据AUTO EXTRA : AX900792

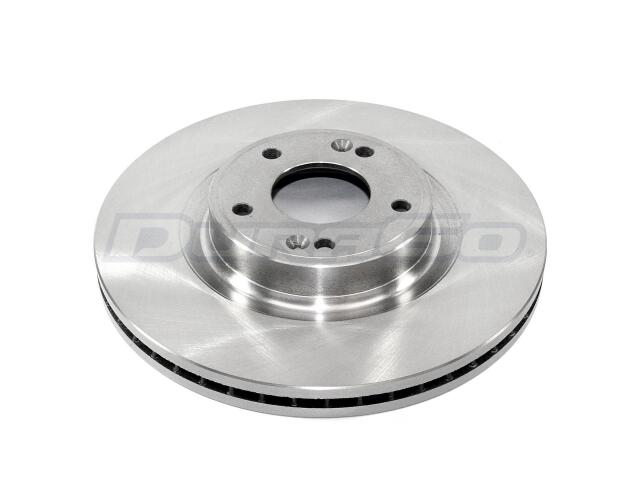

Rotor
AUTO EXTRA : AX900792

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 2.23
Overall Height (MM): 56.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	AX900792:*
