AUTO EXTRA
AX900790P

第三方数据AUTO EXTRA : AX900790P

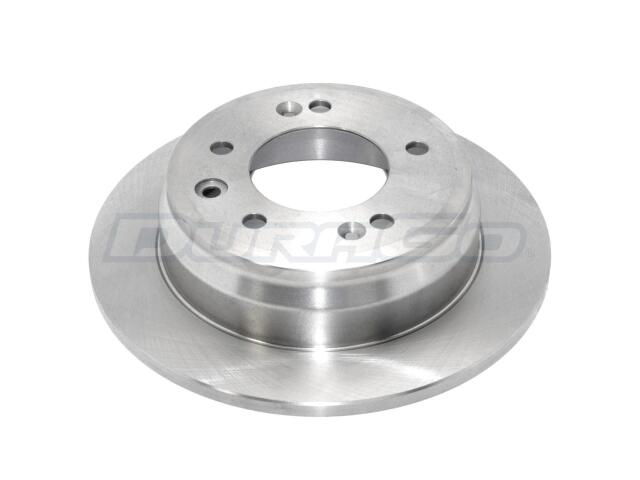

Rotor
AUTO EXTRA : AX900790P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.99
Center Hole Diameter (MM): 76
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.31
Outside Diameter (MM): 262
Overall Height (IN): 2.4
Overall Height (MM): 61
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HYUNDAI (2)

KIA (1)

OE号码

品牌	号码
OE	AX900790P:*
