AUTO EXTRA
AX900748P

第三方数据AUTO EXTRA : AX900748P

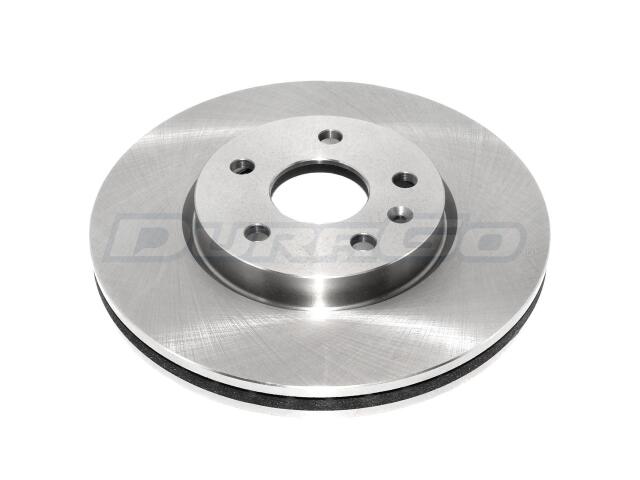

Rotor
AUTO EXTRA : AX900748P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.64
Outside Diameter (MM): 321
Overall Height (IN): 2.01
Overall Height (MM): 51
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SAAB (1)

BUICK (2)

REGAL (3)

LACROSSE (3)

CHEVROLET (5)

MALIBU (3)

EQUINOX (3)

IMPALA (3)

CAMARO (1)

CORVETTE (1)

GMC (1)

OE号码

品牌	号码
OE	AX900748P:*
