第三方数据AUTO EXTRA : AX900690P

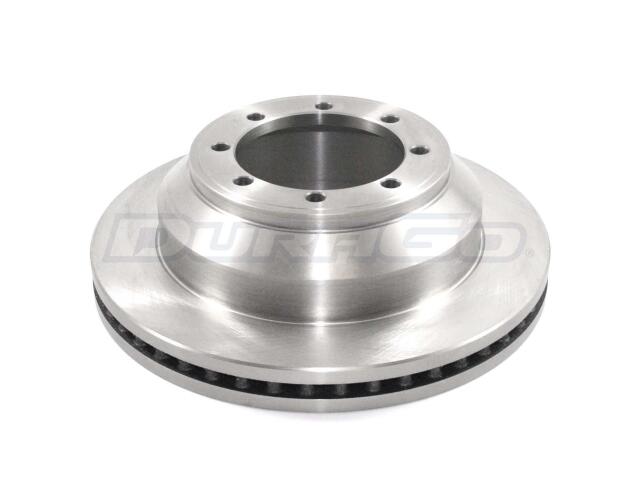

Rotor
AUTO EXTRA : AX900690P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.85
Center Hole Diameter (MM): 123.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.34
Discard Thickness (MM): 34
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.71
Mounting Bolt Hole Circle Diameter (MM): 145
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.42
Nominal Thickness (MM): 36
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 4.21
Overall Height (MM): 107
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

E-350 (5)

5.4L V8 (8)

6.0L V8 DIESEL Turbocharged (3)

6.2L V8 (3)

6.8L V10 (12)

7.3L V8 (3)

OE号码

品牌	号码
OE	AX900690P:*
