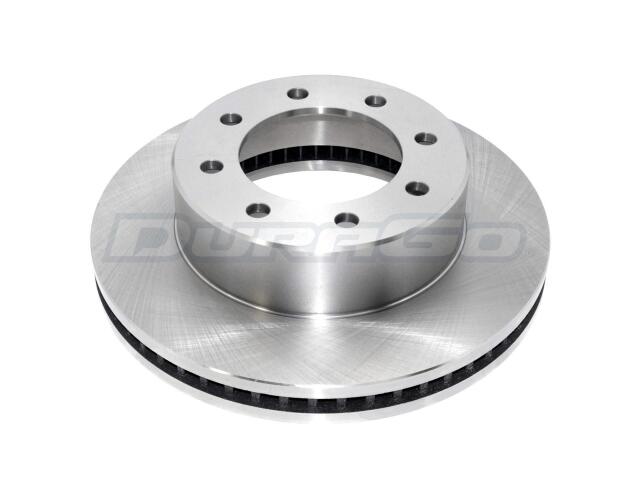

Rotor
AUTO EXTRA : AX900658

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.84
Center Hole Diameter (MM): 123
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.5
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39
Outside Diameter (IN): 14.17
Outside Diameter (MM): 360
Overall Height (IN): 4.02
Overall Height (MM): 102
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

DODGE (2)

RAM (3)

1500 (2)

2500 (3)

5.7L V8 (8)

6.4L V8 (9)

6.7L L6 DIESEL Turbocharged (12)

3500 (3)

5.7L V8 (7)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (12)
