AUTO EXTRA
AX900524P

第三方数据AUTO EXTRA : AX900524P

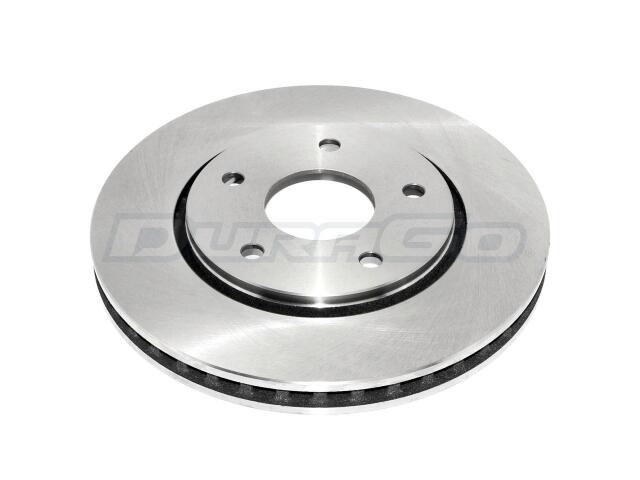

Rotor
AUTO EXTRA : AX900524P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.85
Center Hole Diameter (MM): 72.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 1.5
Overall Height (MM): 38
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

VOLKSWAGEN (1)

DODGE (2)

JOURNEY (3)

GRAND CARAVAN (4)

RAM (1)

OE号码

品牌	号码
OE	AX900524P:*
