第三方数据AUTO EXTRA : AX900440

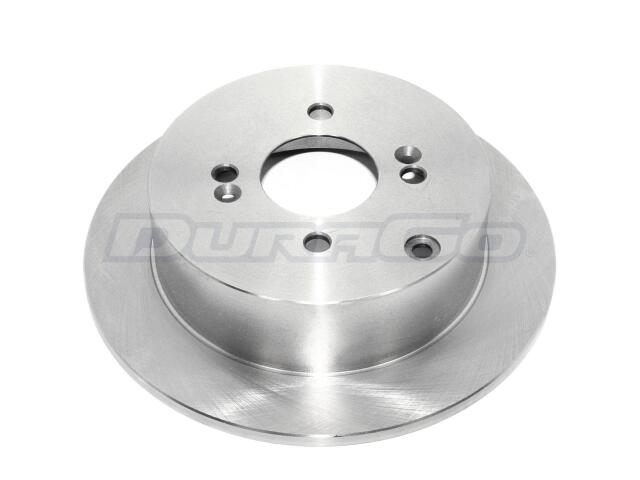

Rotor
AUTO EXTRA : AX900440

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.46
Center Hole Diameter (MM): 62.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.5
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.31
Outside Diameter (MM): 262
Overall Height (IN): 2.51
Overall Height (MM): 63.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HYUNDAI (1)

KIA (2)

OE号码

品牌	号码
OE	AX900440:*
