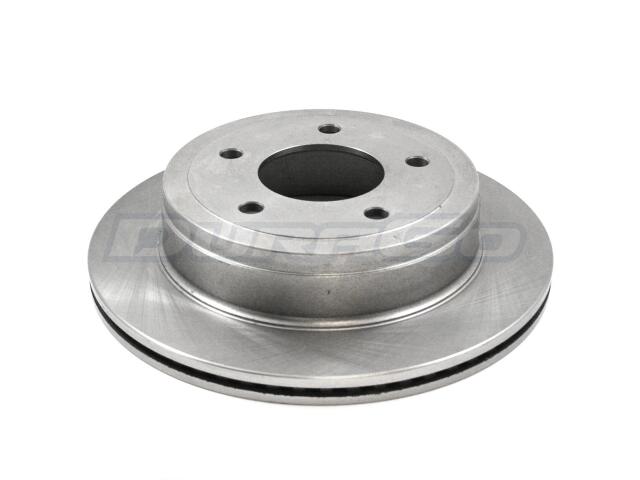

Rotor
AUTO EXTRA : AX900428

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.44
Center Hole Diameter (MM): 87.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.8
Discard Thickness (MM): 20.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.03
Outside Diameter (MM): 331
Overall Height (IN): 2.97
Overall Height (MM): 75.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX900428:*
