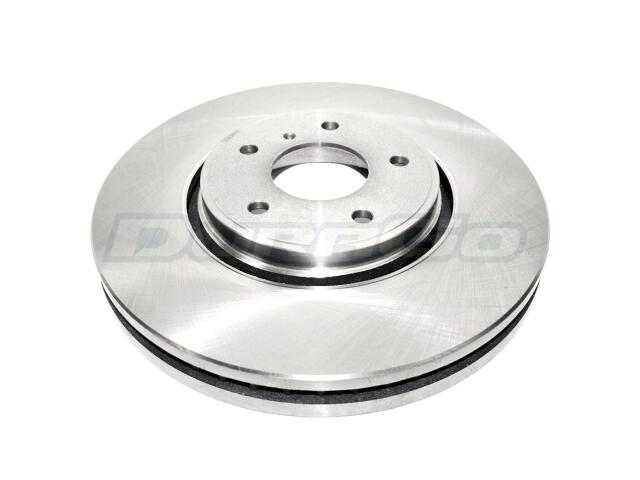

Rotor
AUTO EXTRA : AX900420P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 12.58
Outside Diameter (MM): 319.6
Overall Height (IN): 1.94
Overall Height (MM): 49.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

INFINITI (4)

OE号码

品牌	号码
OE	AX900420P:*
