第三方数据AUTO EXTRA : AX900386

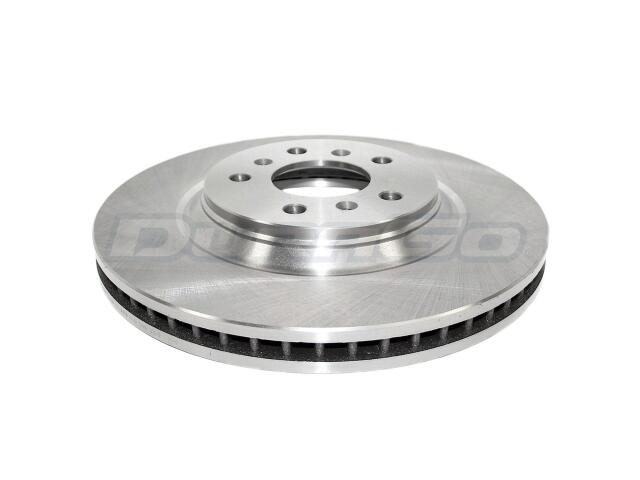

Rotor
AUTO EXTRA : AX900386

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.13
Discard Thickness (MM): 28.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.72
Outside Diameter (MM): 323.2
Overall Height (IN): 2.04
Overall Height (MM): 51.9
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (2)

CADILLAC (1)

CHEVROLET (2)
