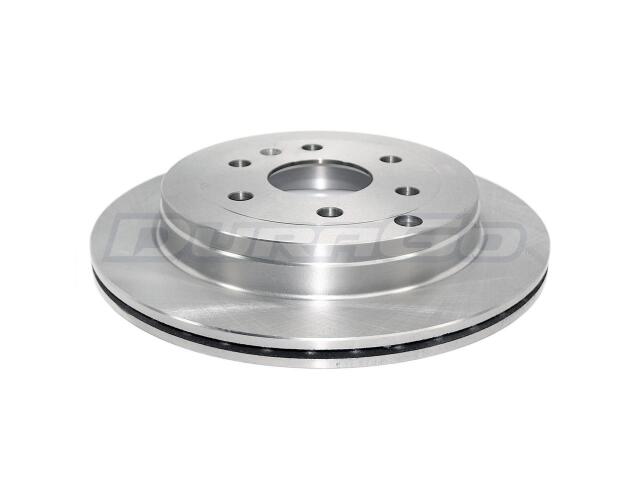

Rotor
AUTO EXTRA : AX900378P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.98
Center Hole Diameter (MM): 75.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.72
Discard Thickness (MM): 18.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.2
Mounting Bolt Hole Circle Diameter (MM): 132
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16.1
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.03
Outside Diameter (MM): 331
Overall Height (IN): 2.1
Overall Height (MM): 53.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CHEVROLET (1)

GMC (1)

SATURN (1)

OE号码

品牌	号码
OE	AX900378P:*
