AUTO EXTRA
AX900366

第三方数据AUTO EXTRA : AX900366

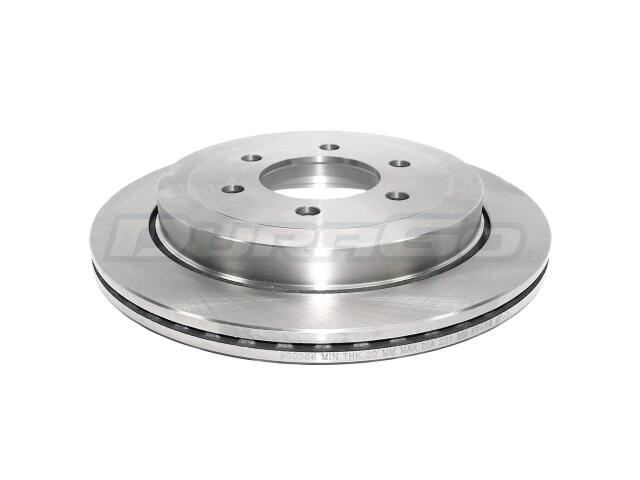

Rotor
AUTO EXTRA : AX900366

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16.1
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.46
Outside Diameter (MM): 342
Overall Height (IN): 2.2
Overall Height (MM): 56
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

LINCOLN (1)
