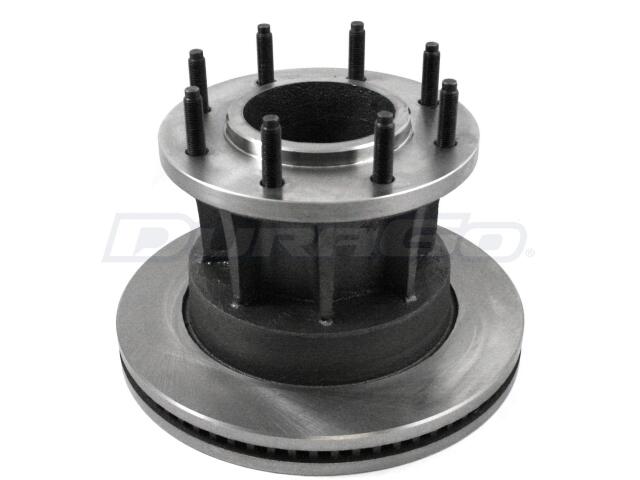

Rotor
AUTO EXTRA : AX900364

Abs Tone Ring Included: Yes
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.43
Discard Thickness (MM): 36.4
Inner Bearing Cup Included: Yes
Mounting Bolt Hole Circle Diameter (IN): 7.87
Mounting Bolt Hole Circle Diameter (MM): 200
Nominal Thickness (IN): 1.5
Nominal Thickness (MM): 38
Outer Bearing Cup Included: Yes
Overall Height (IN): 8.43
Overall Height (MM): 214
Rotor Outside Diameter (IN): 13.66
Rotor Outside Diameter (MM): 347
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud Quantity: 8
Stud Thread Size (MM): M14 x 1.5
Wheel Studs Included: Yes

适用车型

FORD (1)

F-350 SUPER DUTY (5)

5.4L V8 (3)

6.2L V8 (2)

6.4L V8 DIESEL Turbocharged (3)

6.7L V8 DIESEL Turbocharged (2)

6.8L V10 (3)

OE号码

品牌	号码
OE	AX900364:*
