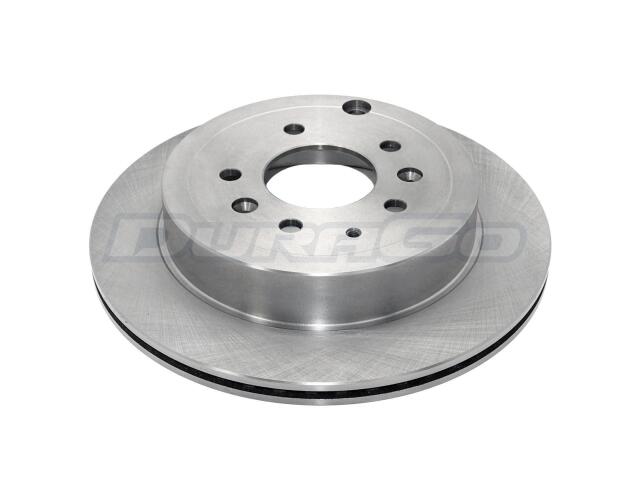

Rotor
AUTO EXTRA : AX900352

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.71
Nominal Thickness (MM): 18
Outside Diameter (IN): 11.88
Outside Diameter (MM): 301.7
Overall Height (IN): 2.2
Overall Height (MM): 55.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	AX900352:*
