AX900332P

第三方数据AUTO EXTRA : AX900332P

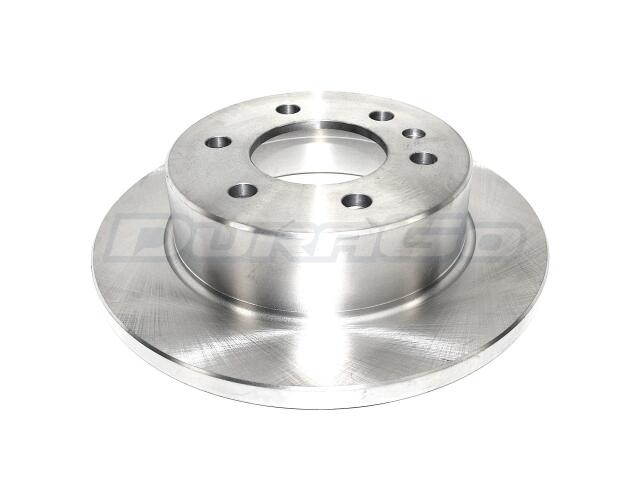

Rotor
AUTO EXTRA : AX900332P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.35
Center Hole Diameter (MM): 85
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.55
Discard Thickness (MM): 14
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.2
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 16
Outside Diameter (IN): 11.73
Outside Diameter (MM): 298
Overall Height (IN): 2.8
Overall Height (MM): 71
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

DODGE (2)

FREIGHTLINER (2)

SPRINTER 2500 (3)

SPRINTER 3500 (3)

2.1L L4 DIESEL Turbocharged (6)

3.0L V6 DIESEL Turbocharged (15)

3.5L V6 (2)

MERCEDES-BENZ (2)

SPRINTER 2500 (2)

SPRINTER 3500 (2)

OE号码

品牌	号码
OE	AX900332P:*
