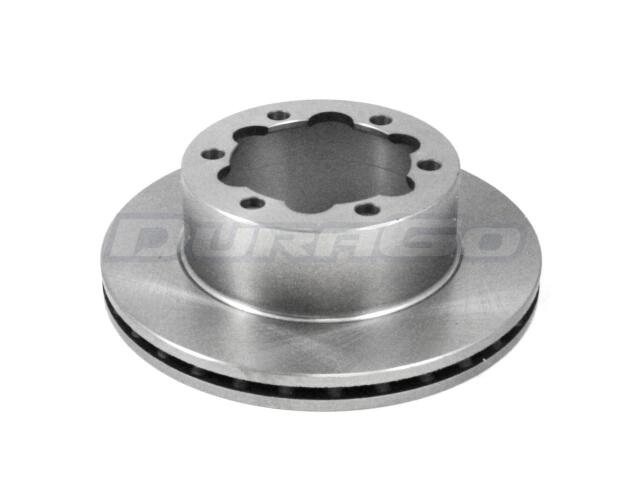

Rotor
AUTO EXTRA : AX900310P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.72
Center Hole Diameter (MM): 120
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.98
Discard Thickness (MM): 25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.71
Mounting Bolt Hole Circle Diameter (MM): 145
Mounting Bolt Hole Diameter (IN): 0.59
Mounting Bolt Hole Diameter (MM): 15
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.93
Outside Diameter (MM): 303
Overall Height (IN): 3.66
Overall Height (MM): 93
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

DODGE (1)

FREIGHTLINER (2)

SPRINTER 3500 (3)

2.1L L4 DIESEL Turbocharged (6)

3.0L V6 DIESEL Turbocharged (15)

3.5L V6 (2)

SPRINTER 3500XD (1)

MERCEDES-BENZ (1)

SPRINTER 3500 (2)

OE号码

品牌	号码
OE	AX900310P:*
