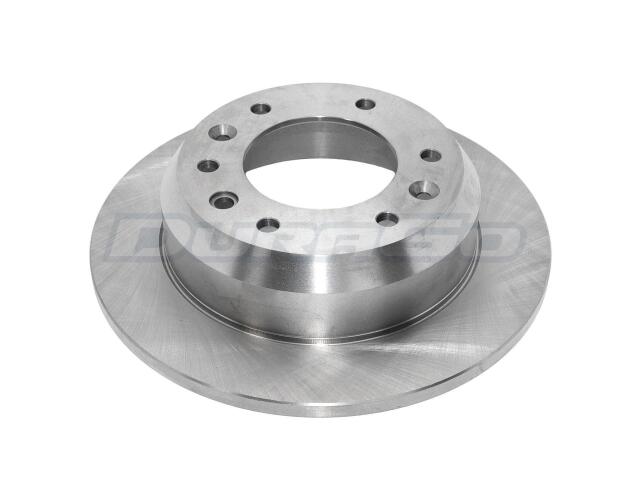

Rotor
AUTO EXTRA : AX900290

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.79
Center Hole Diameter (MM): 96.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.73
Overall Height (MM): 69.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	AX900290:*
