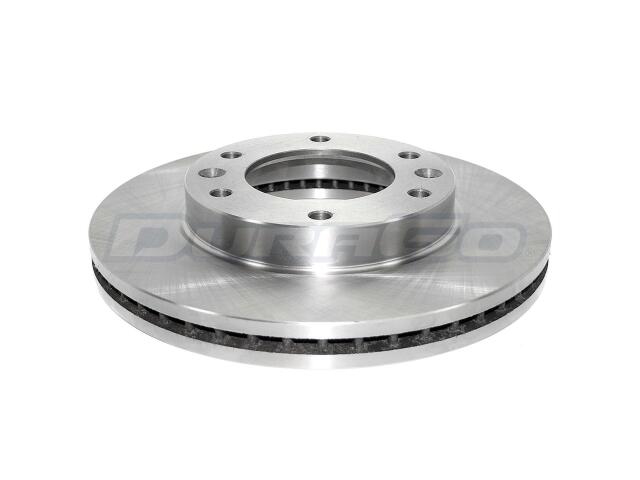

Rotor
AUTO EXTRA : AX900288

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.79
Center Hole Diameter (MM): 96.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.48
Mounting Bolt Hole Diameter (MM): 12.3
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.73
Outside Diameter (MM): 298
Overall Height (IN): 2.13
Overall Height (MM): 54
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

HYUNDAI (1)

KIA (1)
