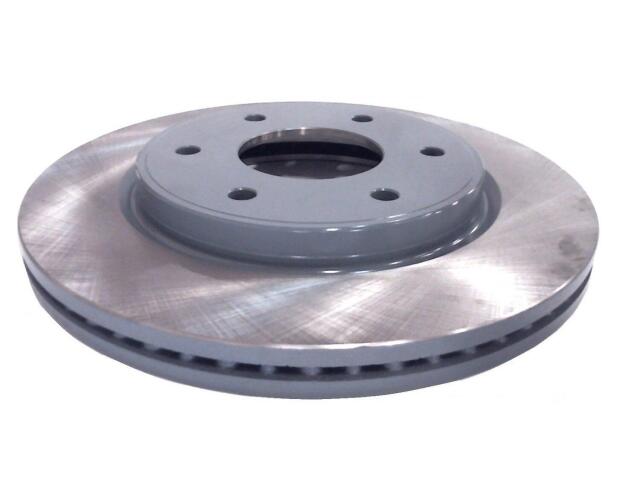

Rotor
AUTO EXTRA : AX900286P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.23
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.94
Discard Thickness (MM): 24
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.53
Mounting Bolt Hole Diameter (MM): 13.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.7
Overall Height (MM): 43.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

NISSAN (2)

INFINITI (1)

OE号码

品牌	号码
OE	AX900286P:*
